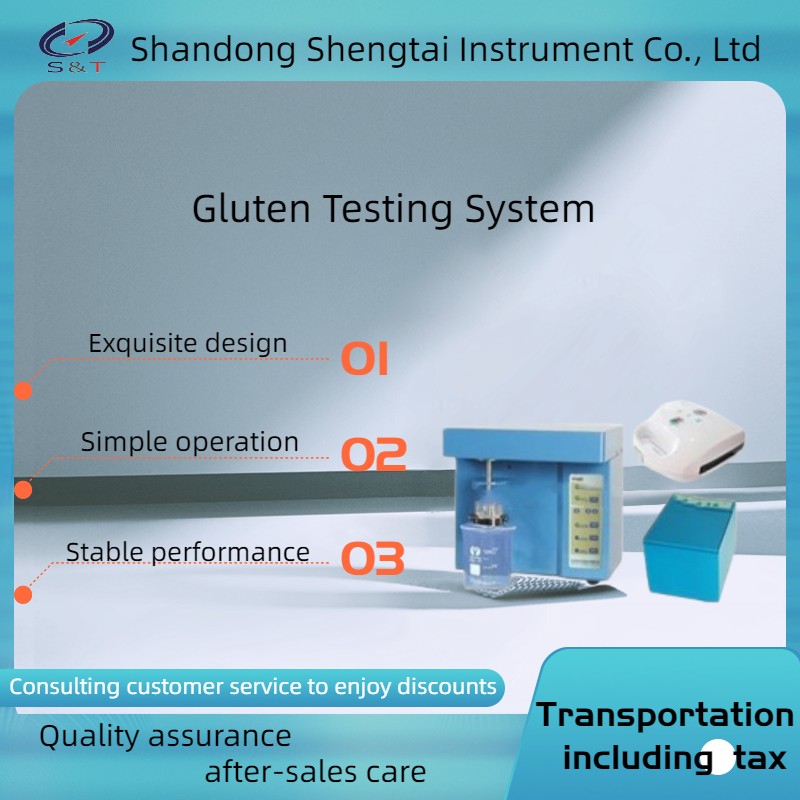

ST007B Double-head Gluten meter, composed of main processor, ST007B Double-head Gluten meter ST008 gluten index analyzer, and ST009 dryer three independent instruments, is used to determine the wet /dry gluten content in flour, gluten quality (gluten index) and gluten water holding rate. Especially suitable for customers with a versatile of samples.
Working theory: 10g flour or wheat flour, added with 5ml brine, mix into dough in a cup with sifter for 20 seconds. Then wash it in brine for 5 min, and thus get gluten. With the centrifugal force, you can calculate the wet gluten content and gluten index by means of SB/T 10248-95. Tech parameter:
|
Agitator rotation speed |
120±2r/min |
|
Thin wash net code |
GFIW0.080/0.045 (plain weave: 200mesh) |
|
Thick wash net code |
GFIW0.0630/0.315 (plain weave: 26mesh) |
|
Wash liquid flow capacity |
50-56ml/min(adjustable) |
|
Dough making time |
1-99s (Set per second) |
|
Wash time |
1-9min (Set per minute) |
|
Centrifugal rotation speed |
6000±5r/min |
|
Centrifugal time |
1min |
|
Dryer temperature |
150±2oC |
|
Repetition |
the difference should be no more than 1.0% between two analyzing results Gluten index: between index 70—100, the difference between two analyze should be no more than 11units; Below index 70, the difference between two analyze should be no more than 15 units |
|
Power |
AC220V±5% 50Hz |
|
Work environment |
temperature 0-40oC; Relative humidity:≤80% |
|
Sizes |
280×320×380mm |
|
Weights |
18kg |
ST008 gluten index：
It is a special instrument for dehydration and gluten index determination of wheat flour wet gluten developed and produced according to GB/T5506.2-2008 "Wheat flour wet gluten determination method" and SB/T10248-95 "Wheat flour wet gluten determination method - gluten index method". The whole machine has the characteristics of stable operation, stable performance and convenient operation, and is an ideal alternative to similar imported instruments.
Technical Specifications
Motor speed: 6000r/min, 3000 r/min
Screen box orifice plate: Φ 0.6mm×1.25mm
Working time: 0.5~5min(adjustable)
Motor power: 25W
Working voltage: AC220V
Total weight: 6kg
ST009 Gluten drying Meter
It is a special instrument for measuring the content of dry gluten in wheat flour. This instrument is used with gluten washing instrument and gluten index meter (gluten centrifuge).
Optimum working temperature: 100-180°C
Relative humidity: <90%
Power rating: 650W
Power supply: AC220V 50Hz
Weight :2.5kg
Overall dimensions: 230×250×110mm
